Detailed explanation of the structure and function of the motor wind blade

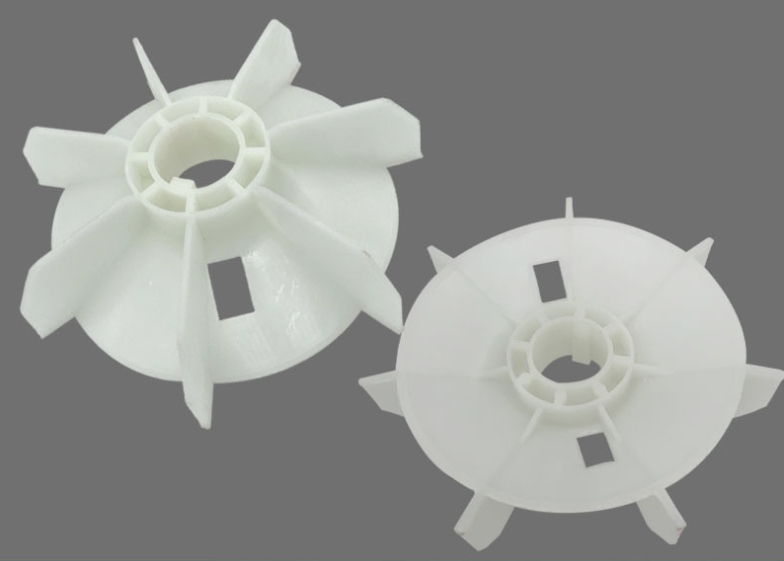

Motor air blades are an integral part of the motor industry, they are an important part of the motor and are used to draw air or gas into or out of the motor's interior, there are a wide variety of motor air blades and different motor air blades have different structures and functions.

First, the various names of the motor wind blade

1. Wind wheel blade: it is a traditional motor wind blade, which usually consists of several blades with round or rectangular shape, used to generate airflow and increase the air volume of the motor.

2. Centrifugal fan blade: it is a new type of motor fan blade, adopting centrifugal design, which can greatly improve the airflow and efficiency of the motor.

3. Inclined flow wind blade: it is a unique structure of the motor wind blade, its blade is inclined angle shape, can push the airflow forward, improve the air volume and efficiency of the motor.

4. Axial wind blade: it is a special motor wind blade, its blade is flat, can push the airflow along the direction of the axis, produce strong wind power.

Second, the structure and function of the motor wind blade

1. Structure and function of wind turbine blade

The main structure of wind turbine blade includes blade, blade shaft, impeller, hub and other components. Blades are usually made of metal or plastic and other materials, and their shape and length determine the wind volume and efficiency of the motor. while the impeller and hub are used to support and fix the blades.

The main function of a wind turbine blade is to generate airflow and increase the airflow of the motor. It can draw air or gas into or out of the motor, different shapes and lengths of blades will produce different airflow effects, so the selection of wind turbine blades needs to be based on specific application scenarios.

2. Structure and function of centrifugal air blades

The main structure of centrifugal wind blade includes air inlet, centrifugal wheel, air outlet and other components. Centrifugal wheel is the core component of centrifugal fan, usually composed of multiple blades, the blades are curved, and can produce strong airflow. The air inlet and outlet are used to control the direction and speed of airflow.

The main function of the centrifugal air blade is to greatly increase the airflow and efficiency of the motor. It can produce strong airflow to draw air or gas into or out of the motor. The unique structure of centrifugal airfoil can greatly improve the airflow and efficiency of the motor.

3.The structure and function of inclined flow wind blade

The main structure of the inclined flow wind blade includes blades, disk, hub and other components. The blades are angled to push the airflow forward, while the wheel disk and hub are used to support and fix the blades.

The main function of the inclined flow fan blade is to push the airflow forward to improve the airflow and efficiency of the motor. Its unique structure can effectively improve the direction and speed of airflow.

4. Structure and function of axial flow fan blade

The main structure of the axial fan blade includes blades, disk, bearings and other components. The blades are flat and can push the airflow in the axial direction, while the disk and bearings are used to support and fix the blades.

The main function of the axial airfoil is to generate strong wind power to push the airflow along the axis, and its unique structure can effectively improve the direction and speed of the airflow.

Motor air blades are an integral part of the motor industry, they are an important part of the motor and are used to draw air or gas into or out of the motor's interior. When choosing motor air blades, you need to select them according to the specific application scenario to achieve the best results.
