Manufacturing Process and Material Selection for Commutators

Manufacturing Process and Material Selection for Commutators

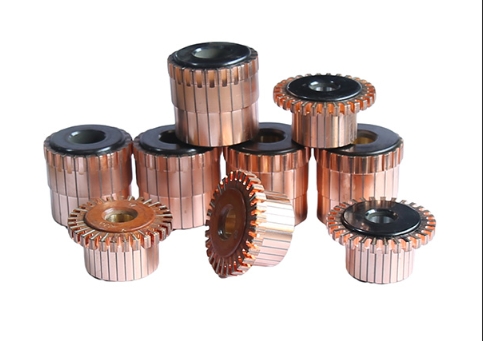

The production of commutators is a precision manufacturing process demanding stringent material selection and machining accuracy. Commutator segments typically employ highly conductive copper alloys containing trace amounts of silver or cadmium. These alloying elements preserve copper's high conductivity while enhancing material hardness and wear resistance. After precision stamping or machining, the copper components undergo surface treatment to improve wear resistance and reduce contact resistance.

The selection of insulating materials is equally critical. Traditional commutators utilize natural mica as insulation between commutator segments due to its excellent high-temperature resistance and electrical insulation properties. Modern high-performance commutators increasingly employ synthetic mica or specialty plastic films, which offer superior mechanical strength and thermal stability. The thickness of the insulating material must be precisely controlled; excessive thickness affects the overall dimensions of the commutator, while insufficient thickness may lead to insulation failure.

The assembly process of commutators directly impacts their operational performance and service life. Precision molds ensure correct positioning of all commutator segments and insulating layers. The entire assembly is then cured under high temperature and pressure to form a robust, integrated unit. High-end commutators undergo dynamic balancing after assembly to ensure smooth operation during high-speed rotation. For specialized applications, commutator surfaces may receive silver or gold plating to further reduce contact resistance and minimize sparking.
