Primary Functions and Material Types of Stator Magnetic Rings in Water Pump Motors

We all know that aquarium pumps, circulation pumps, submersible pumps, magnetic drive pumps, and others all utilize magnets. So what is the primary function of the magnets (rotor magnetic rings) in DC pump motors?

What role do magnetic rings play in pump motors?

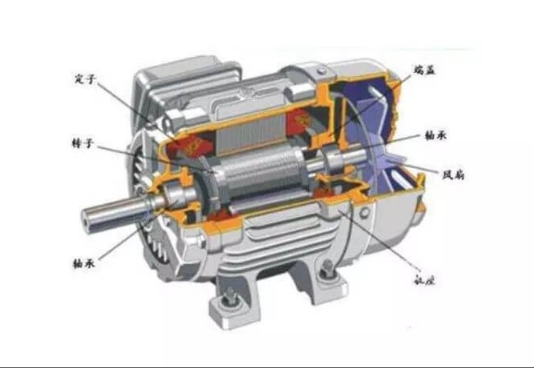

The rotor magnetic ring in pump motors is the key component for generating a magnetic field. It interacts with the stator coils to form electromagnetic torque, driving the rotor to rotate and converting electrical energy into mechanical energy. The magnetic properties of the ring directly impact the motor's starting performance, operational efficiency, and noise levels. In modern brushless water pumps, the rotor magnetic ring often employs a radial multi-pole magnetization structure. This design can be paired with Hall effect sensors or control chips to achieve intelligent drive systems characterized by high efficiency, quiet operation, and extended lifespan.

What type of magnets are primarily used in pump motors?

Ferrite materials are most commonly employed in pump motors, primarily sintered ferrite and molded ferrite. Some applications also utilize bonded neodymium iron boron. The most frequently used pole configurations are 2-pole and 4-pole, offering advantages such as high reliability, easy installation, smooth operation, long service life, excellent mechanical properties, and high cost-effectiveness. In summary, the rotor magnetic ring in water pump motors primarily generates a stable magnetic field to produce driving torque. Materials range from high-performance neodymium iron boron to economical ferrite, each with distinct advantages and limitations. Selecting the appropriate rotor magnet material based on motor type (brushless/brushed, dry/wet) and operating environment (temperature, water quality, corrosion) is crucial for enhancing pump efficiency and longevity.
