Manufacturing Processes and Material Selection for Brush-Type Motor Commutators

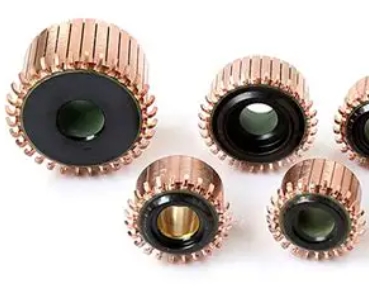

The manufacture of commutators is a precision process that demands the highest standards in both material selection and machining accuracy. Commutator segments are typically made from highly conductive copper alloys containing small amounts of silver or cadmium; these trace alloying elements preserve copper’s high electrical conductivity whilst enhancing the material’s hardness and wear resistance. After being formed through precision stamping or machining, the copper components require surface treatment to improve wear resistance and reduce contact resistance.

The selection of insulating materials is equally critical. Traditional commutators utilise natural mica as insulation between the commutator segments due to its excellent high-temperature resistance and electrical insulation properties. Modern high-performance commutators, however, increasingly employ synthetic mica or specialised plastic films, which offer superior mechanical strength and thermal stability. The thickness of the insulating material must be precisely controlled; excessive thickness will affect the overall dimensions of the commutator, whilst insufficient thickness may lead to insulation failure.

The assembly process of the commutator directly affects its operational performance and service life. Precision moulds ensure the correct positioning of all commutator segments and insulating sheets, followed by a high-temperature, high-pressure curing process that binds the entire assembly into a robust unit. High-end commutators also require dynamic balancing after assembly to ensure smooth operation during high-speed rotation. For certain specialised applications, the surfaces of commutators are treated with silver or gold plating to further reduce contact resistance and minimise sparking.
