The Main Differences Between Injection-Moulded Ferrite and Sintered NdFeB Magnets

Injection-moulded ferrite and sintered NdFeB belong to two entirely different categories of magnetic materials, and there are significant differences between them. A detailed explanation follows.

1. Magnetic Properties

This is the fundamental difference. Sintered NdFeB magnets have a high magnetic energy product and strong magnetic force, making them suitable for motors requiring high torque and high power density. Injection-moulded ferrites have a magnetic energy product far lower than that of NdFeB and are mostly used in applications where magnetic performance requirements are not as stringent.

2. Moulding Method and Design Flexibility

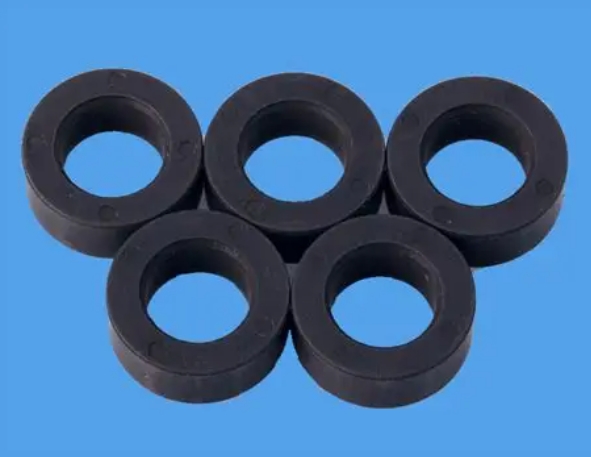

Sintered neodymium-iron-boron is produced by powder compaction followed by high-temperature sintering; it is highly brittle and unsuitable for complex structures. Injection-moulded ferrites are formed in a single injection moulding process using magnetic powder and plastic, allowing them to be moulded as a single unit with shafts and brackets, making complex structures feasible.

3. Mechanical Properties and Reliability

Sintered NdFeB is hard and brittle, with poor resistance to impact and vibration, making it prone to chipping and cracking. Injection-moulded ferrites contain a plastic matrix, offering good toughness and significantly superior resistance to shock and drops, making them less prone to breakage.

4. Cost and batch consistency

The price of raw materials for sintered NdFeB fluctuates significantly, and processing losses are high. Injection-moulded ferrites have stable raw material costs; moulded mass production ensures good consistency, making them more suitable for multi-pole magnetisation.

5. Product Applications

Sintered NdFeB is commonly used in motors and electronic products with strict requirements for high power density, high torque or miniaturisation, such as brushless motors, servo systems and consumer electronics. Injection-moulded ferrites are commonly used in small household appliance motors, sensors, encoders, automotive actuators and other products that require moderate magnetic strength but prioritise reliability and batch consistency. Sintered neodymium-iron-boron is recommended where strong magnetism and high power density are required. Injection-moulded ferrites are recommended where magnetic requirements are not high, cost is a key consideration, and complex multi-pole structures are required.
